Tarter Cattlemaster Series 12 Hydraulic Chute - Tarter

Tarter Cattlemaster Series 12 Hydraulic Chute

Manufactured by Tarter
Model # CMHC12
$15,649.00 - $15,649.00
$15,649.00
$15,649.00 - $15,649.00
$15,649.00

Authorized Dealer

Bison Haul is an authorized Tarter dealer, ensuring quality and full manufacturer support.

Freight Shipping

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (307) 218-7231

Request a quote

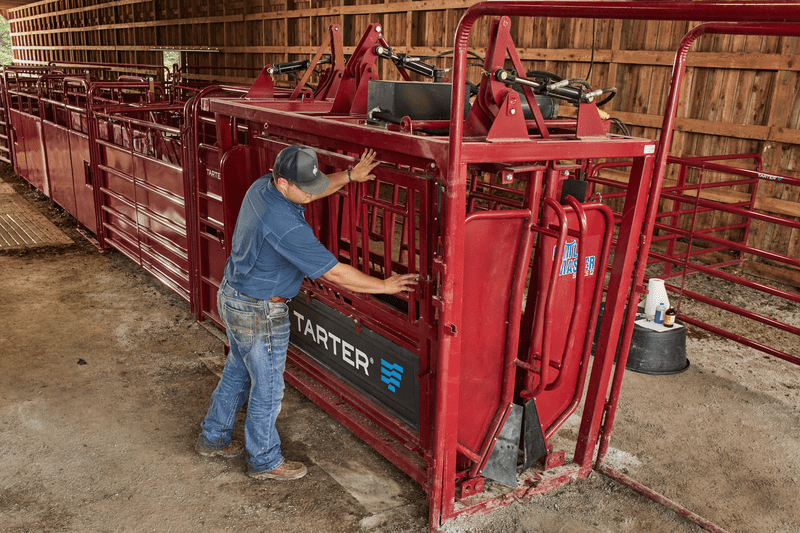

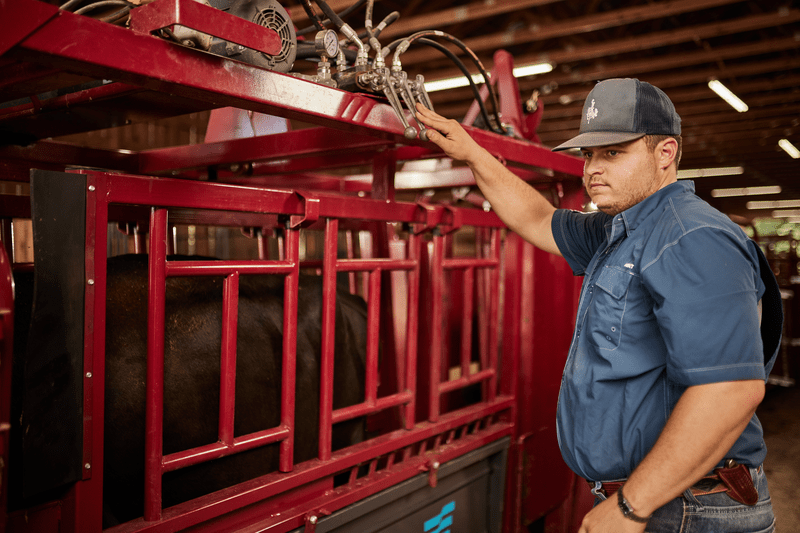

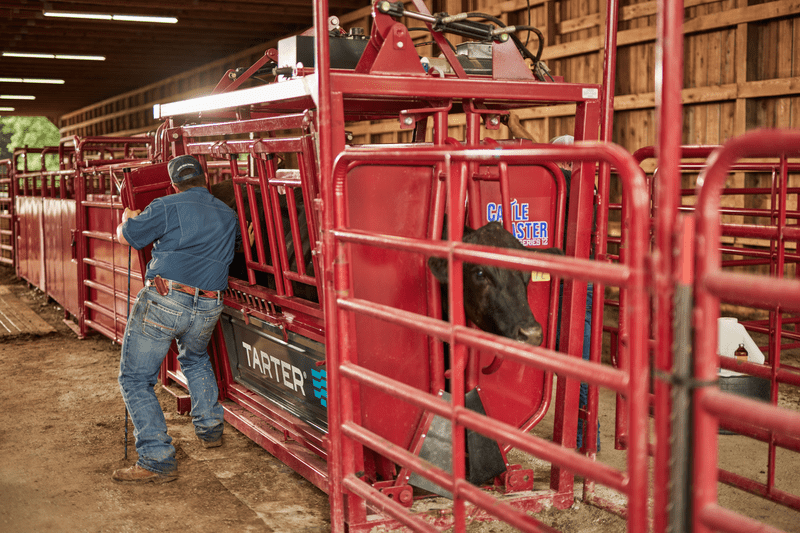

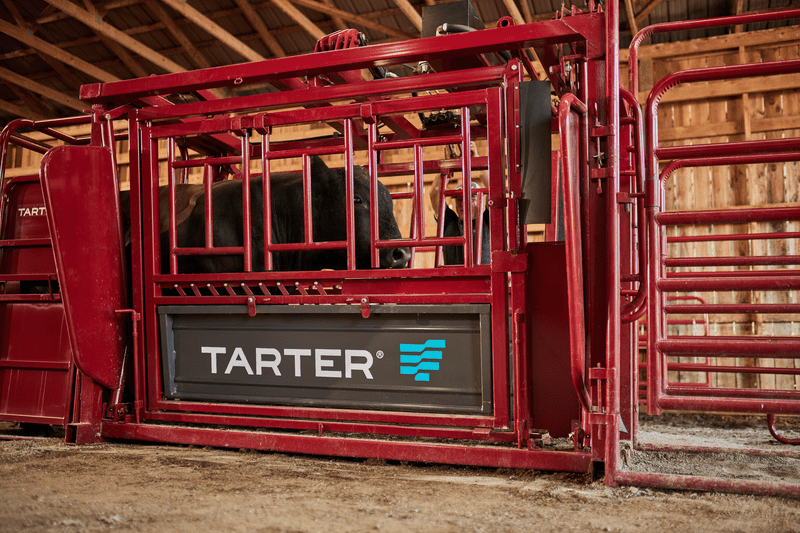

Tarter’s CattleMaster Series 12 Hydraulic Chute is engineered with safety and convenience in mind for cattle operations that want the ease of hydraulics. Plus, high volume operations handling more than 50 livestock. You can operate the tailgate, headgate and squeeze function standing in one location. The easy squeeze mechanism applies pressure safely to keep the animal still while you work.

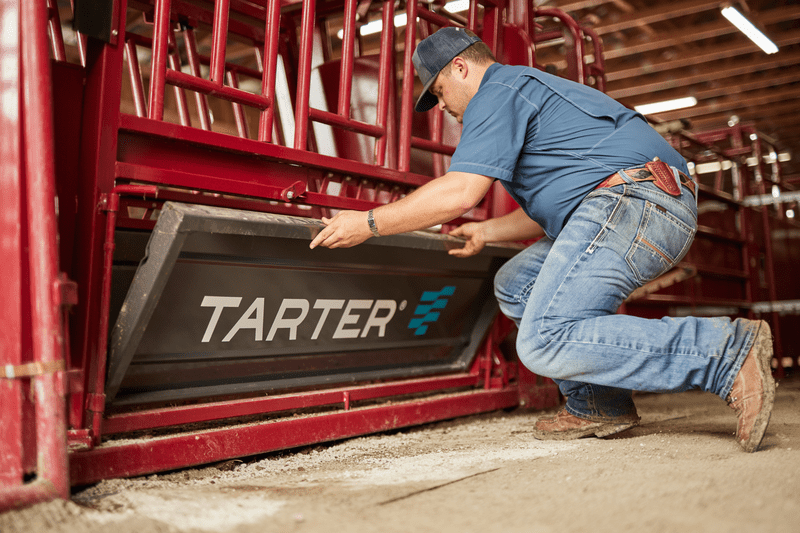

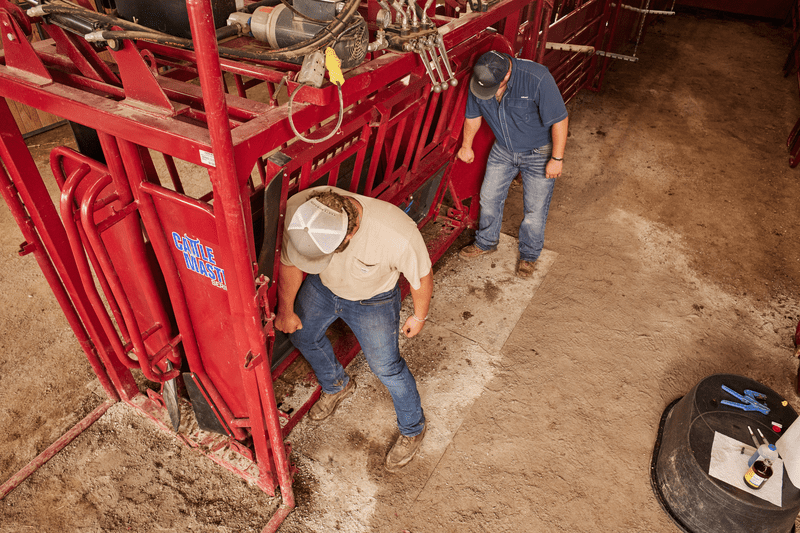

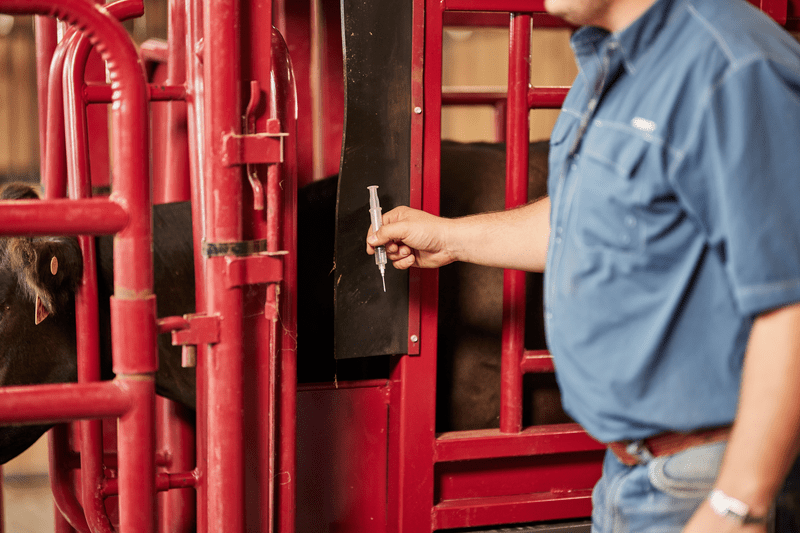

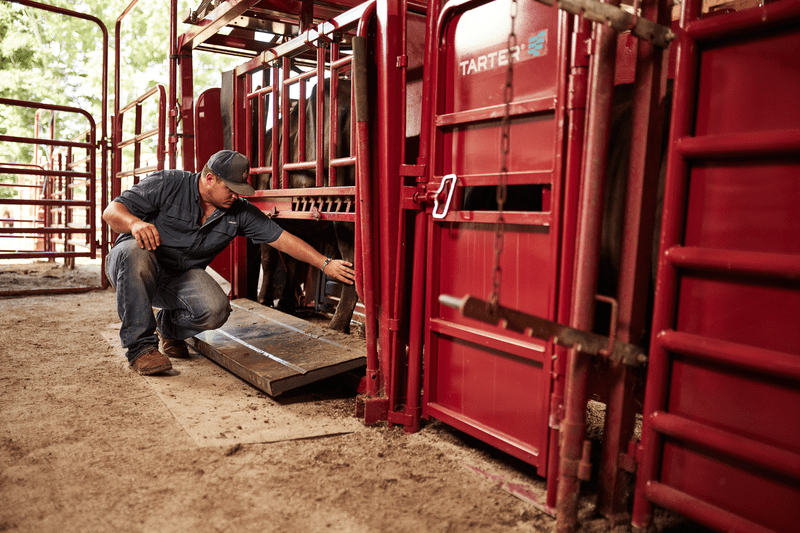

The removable top and bottom panels allow quick and easy access for branding, vaccinating, and deworming. The hinged side panel opens, providing an additional exit.

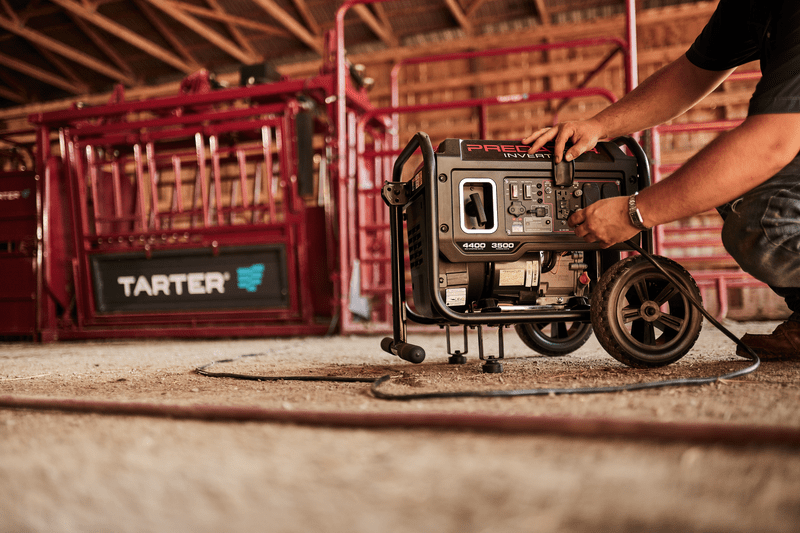

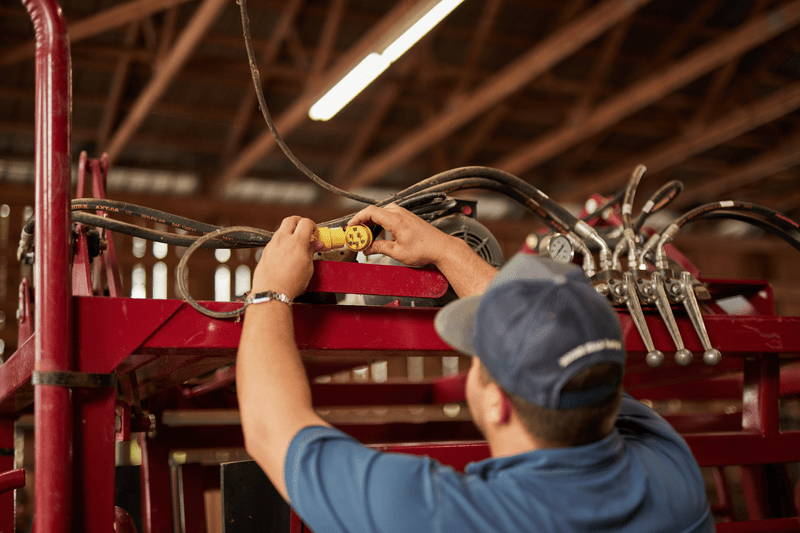

Tapered side panels have 6 adjustment settings. This chute is coated with a corrosion-resistant finish. Plug into a 110-volt power source or 4,000-5,000-watt generator. 30-amp breaker required.

FEATURES

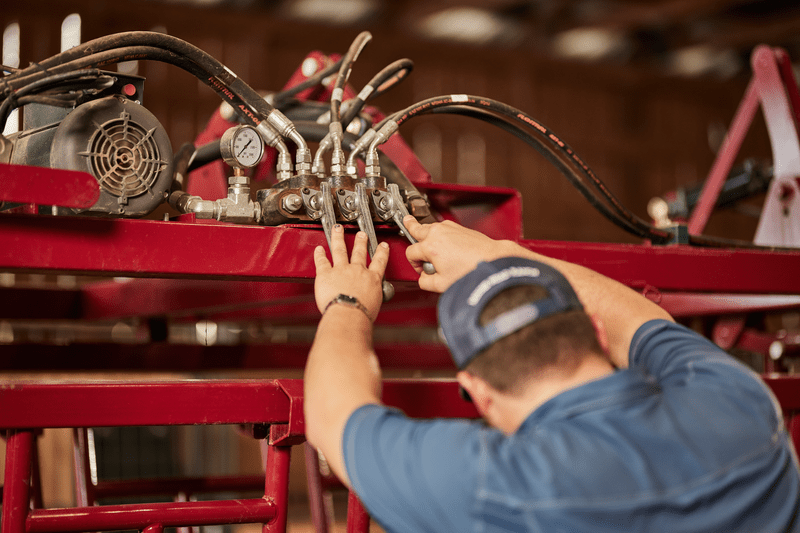

  • Three‑Lever Hydraulic Operation

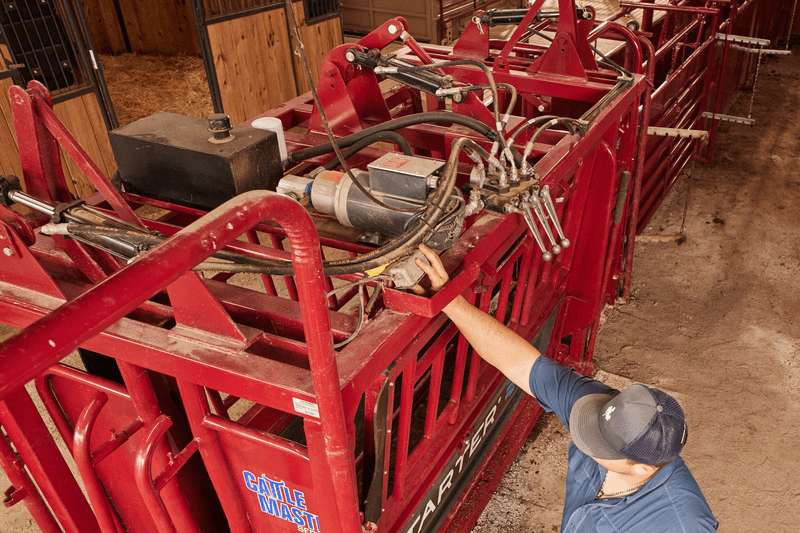

  • Fully Integrated Hydraulic System
  • Exceptional Access Design
  • Adjustable Side Panels & Backup Bar
  • Spacious Working Envelope
  • Durable, Corrosion-Resistant Finish

SPECIFICATIONS


  • Part: CMHC12

  • Length: 113 in.

  • Width: 53 in.

  • Height: 96 in.

  • Approx. Weight: 1,900 lbs

  • Herd Size: 50+ head

  • Maximum Animal Weight: 2,000 lbs

  • Color: Red

  • Headgate Type: Manual - Hydraulic

  • Tailgate Style: Split Pivot

  • Top Side Access: Yes

  • Upper Access Panels: Hinged, removable

  • Removable Kickpan: Yes

  • Ratchet Back Up Bar: Yes

  • Side Panel Width Adjustment: Yes

  • Adjustable Neck Extenders: Yes

  • Nose Bar Available: No

  • Gallagher Scale Adapter Kit Available: No

  • Min. Operating Clearance (H x W x L): 93 in. x 133 in. W x 113 in. L

  • Max. Interior Dimensions (H x W x L): 66 in. x 31 in. W x 95 in. L

  • Warranty: 1 year

SHIPPING & SUPPORT

This product ships directly from Tarter U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@bisonhaul.com or call (307) 218-7231 — our team is here to help.
