Tarter Cattlemaster Series 9 Squeeze Chute W/ Auto Headgate - Tarter

Tarter Cattlemaster Series 9 Squeeze Chute W/ Auto Headgate

Manufactured by Tarter
Model # CMSCA9
$11,220.00 - $11,220.00
$11,220.00
$11,220.00 - $11,220.00
$11,220.00

Authorized Dealer

Bison Haul is an authorized Tarter dealer, ensuring quality and full manufacturer support.

Freight Shipping

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (307) 218-7231

Request a quote

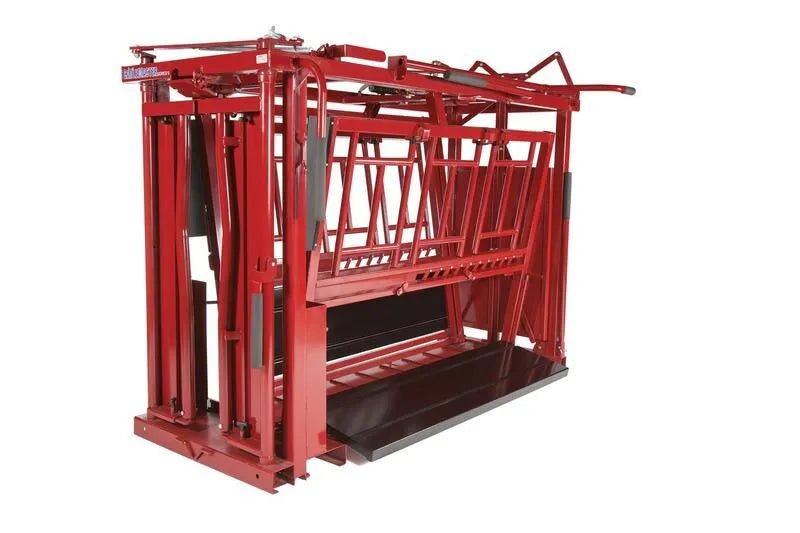

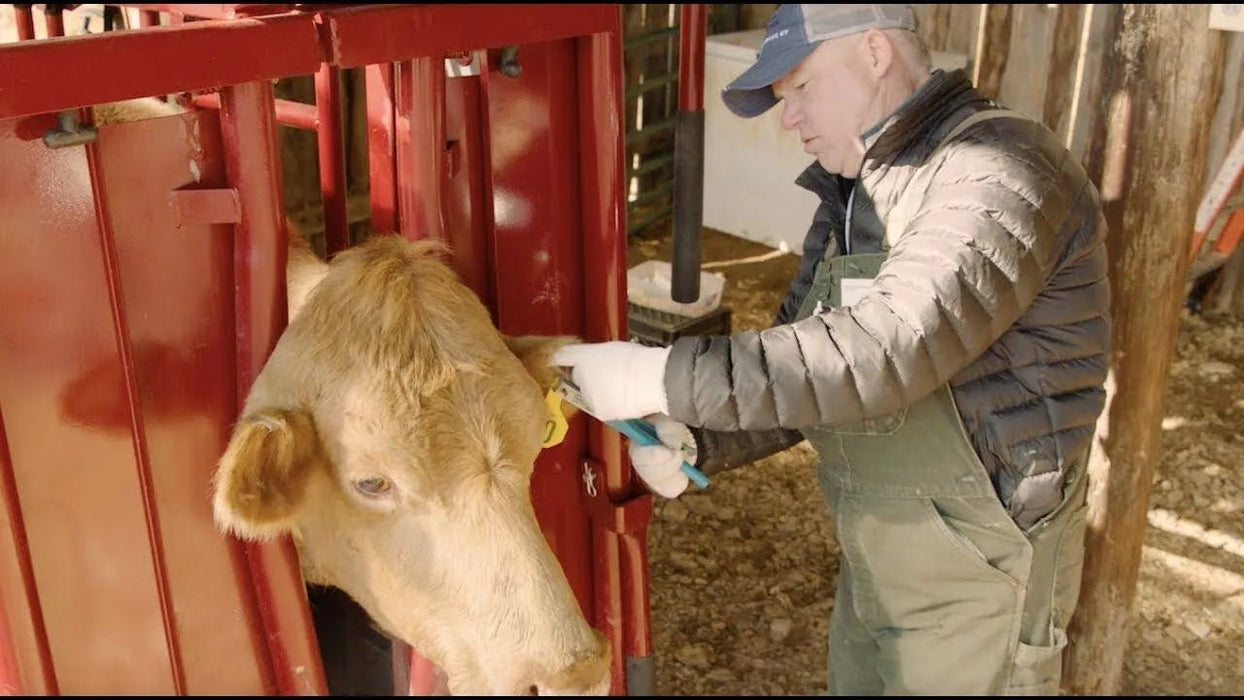

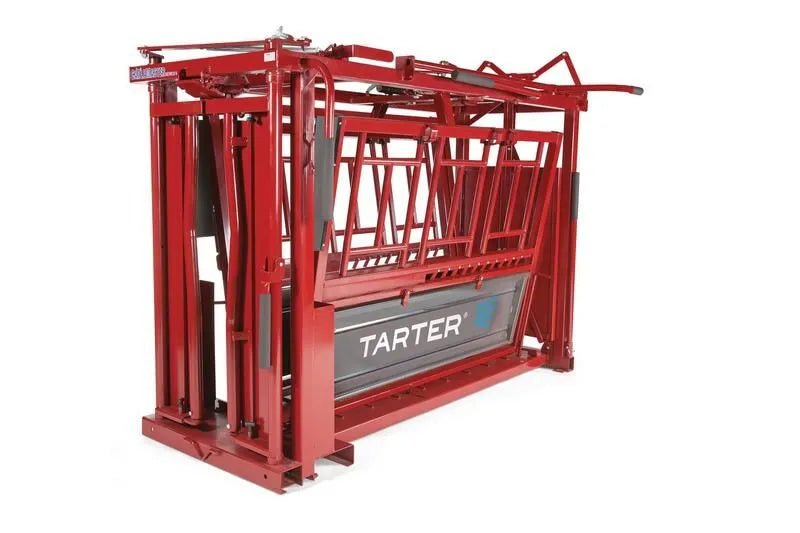

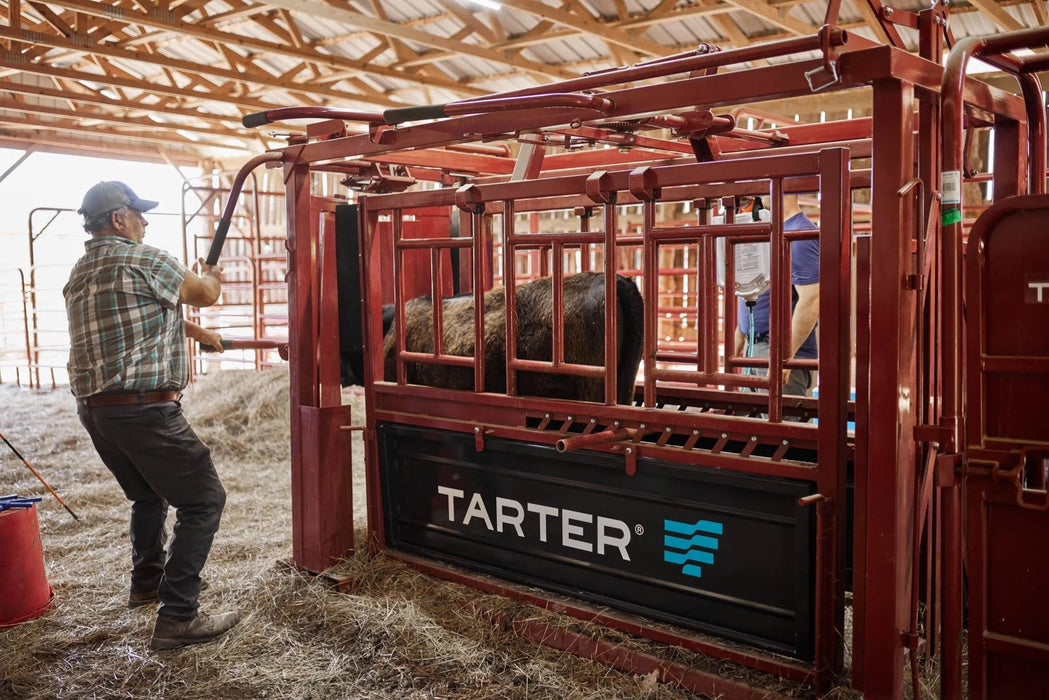

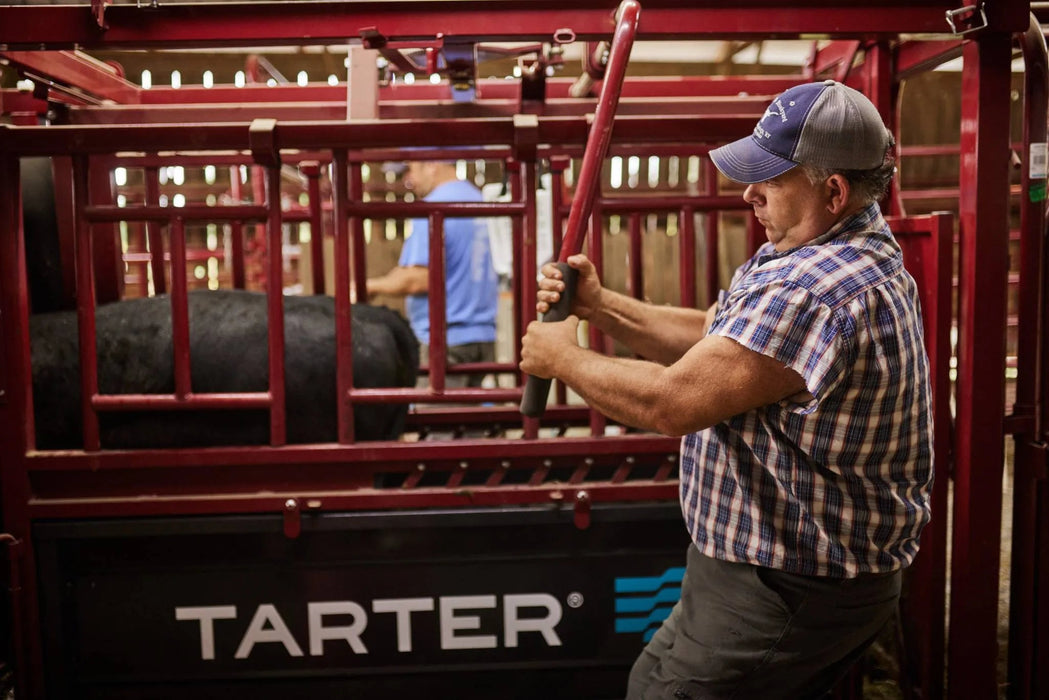

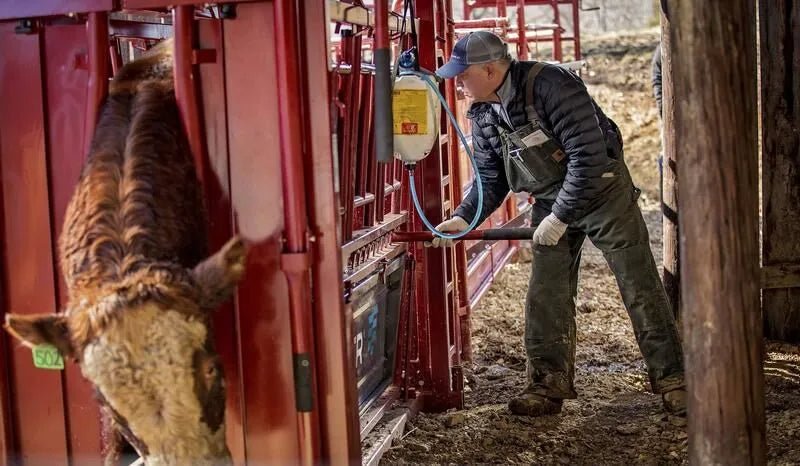

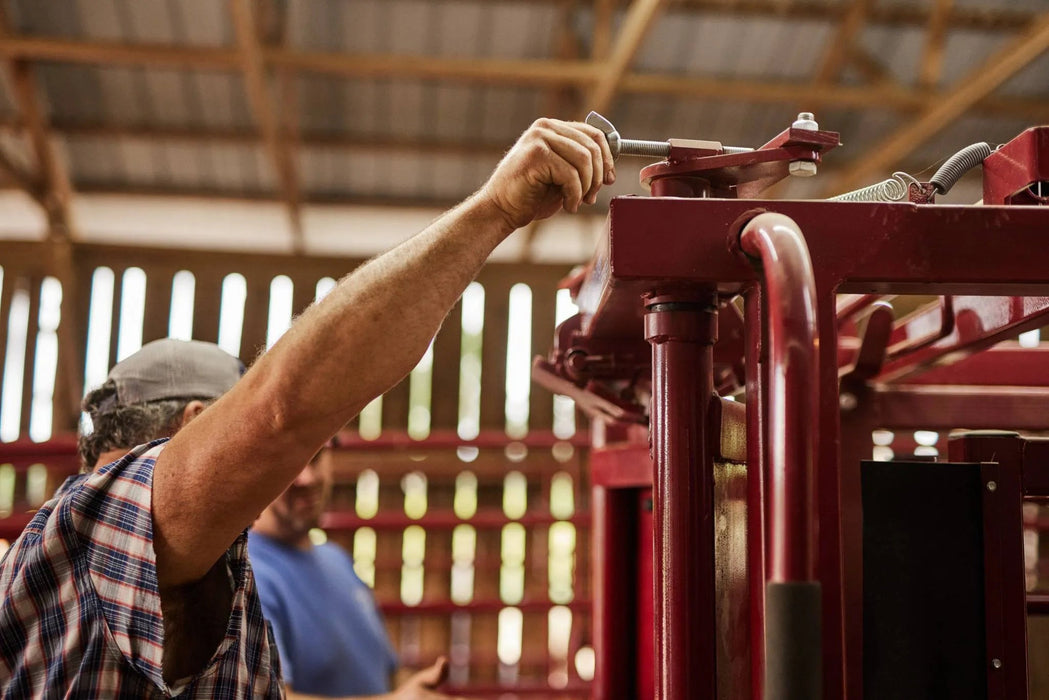

Tarter’s CattleMaster Series 9 Chute is built on a heavy-duty steel frame, making it tough enough to hold up to the rigors of high-volume cattle handling. It’s easy to use and protects your investment. The automatic, spring-cushioned headgate does the catching for you. Once the animal is released, it automatically resets for the next round. The squeeze mechanism applies pressure safely to keep cattle still while you work.

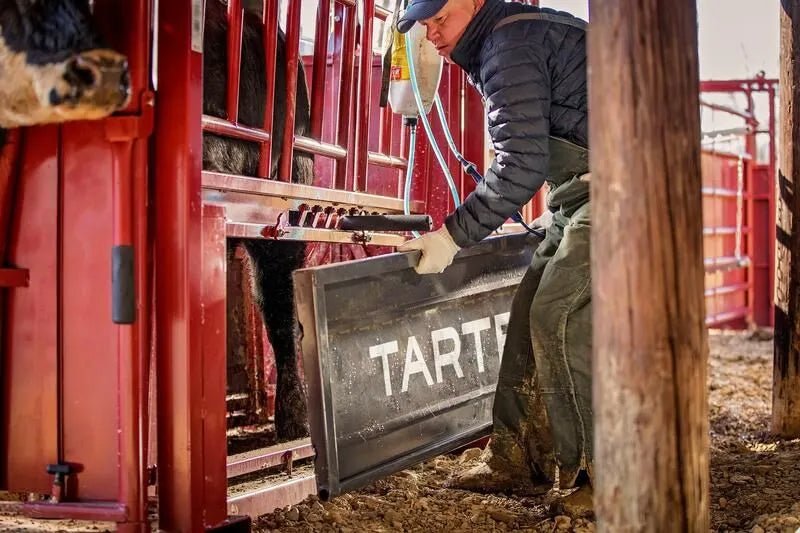

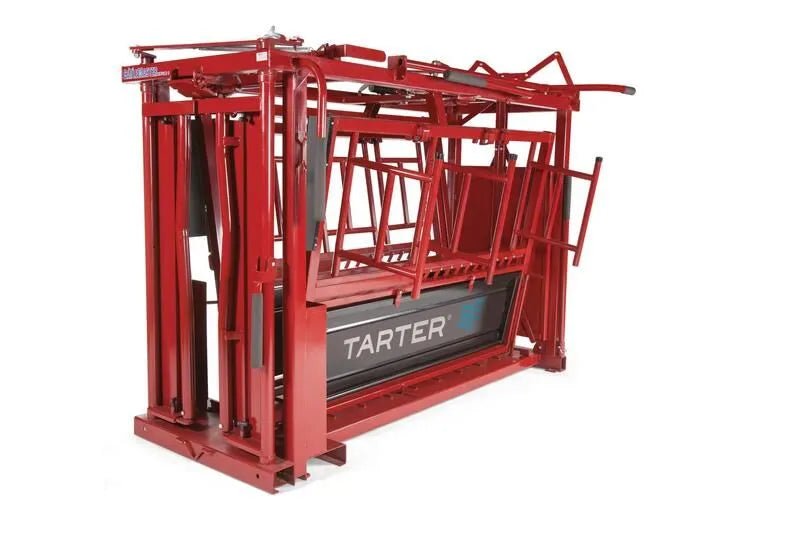

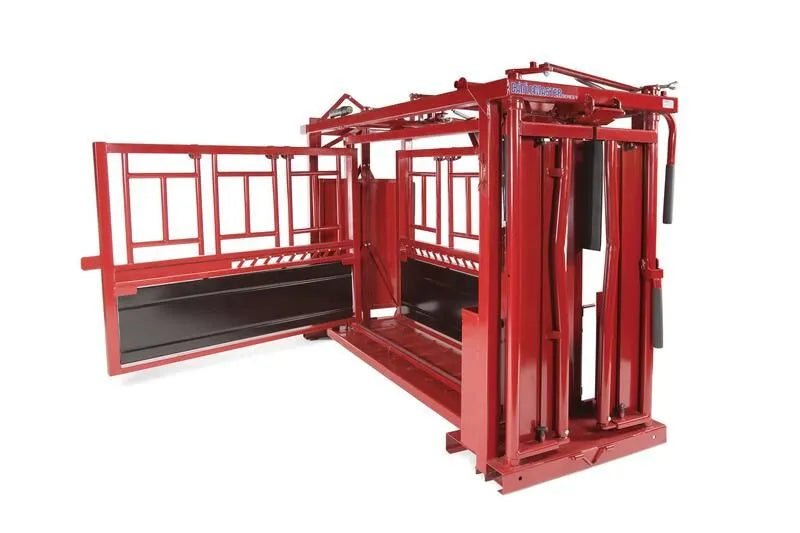

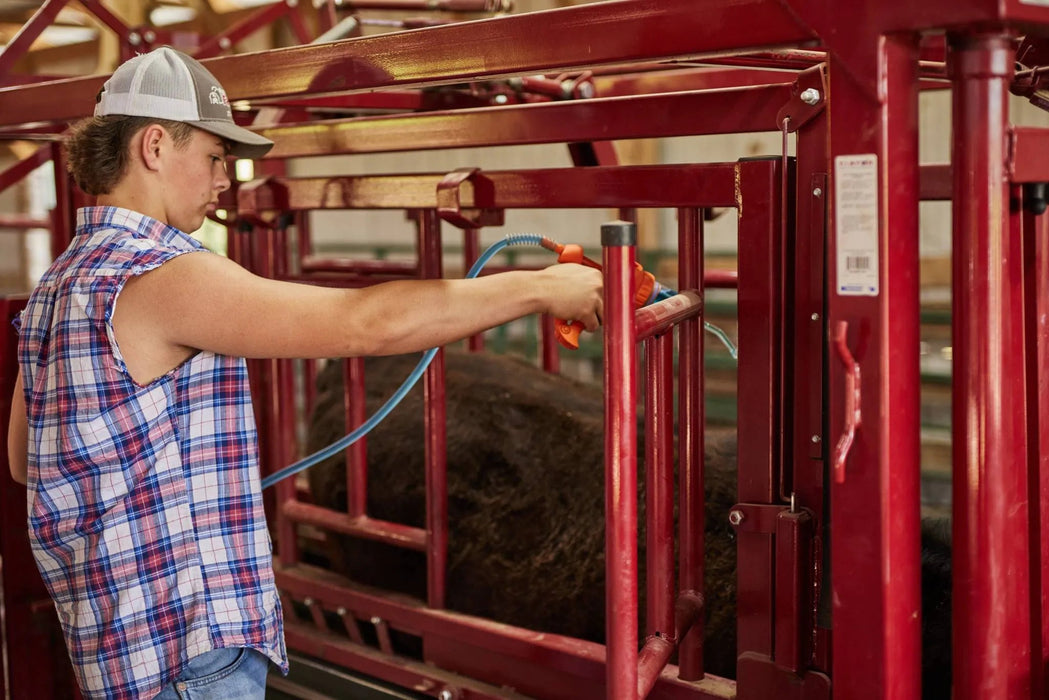

The removable top and bottom panels allow quick and easy access for branding, vaccinating, and deworming. The adjustable side panels easily accommodate everything from calves to bulls. The hinged side panel opens, providing an additional exit.

Tapered side panels have 6 adjustment settings. This chute is coated with a corrosion-resistant finish.

FEATURES

  • Automatic, Spring-Cushioned Headgate
  • Heavy‑Duty Steel Construction
  • Adjustable Squeeze Mechanism
  • Full Access Panels
  • Adjustable, Tapered Side Panels
  • Hinged Side Exit
  • Removable Kickpan & Pivot Tailgate
  • Ratcheting Back‑Up Bar
  • High Animal Capacity & Strength
  • Corrosion-Resistant Finish
  • Accessory Ready
  • Spacious Operator Clearance

SPECIFICATIONS

Specification Details
Part CMSCA9
Herd Size 50+ head
Length 111 in.
Width 52 in.
Height 88 in.
Approx. Weight 1,650 lbs
Color Red
Headgate Type Automatic
Top Side Access Yes
Upper Access Panels Hinged, removable
Tailgate Style Split pivot
Removable Kickpan Yes
Ratcheting Back Up Bar Yes
Side Panel Width Adjustment Yes
Adjustable Neck Extenders No
Nose Bar Available No
Maximum Recommended Animal Weight 2,000 lbs
Gallagher Scale Adapter Kit Available No
Wheel Kit Available Yes
Minimum Operating Clearance (H × W × L) 112 in. × 105 in. × 109 in.
Max. Interior Dimensions (H × W × L) 62 in. × 39 in. × 98 in.
Warranty 1 year



SHIPPING & SUPPORT

This product ships directly from Tarter U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@bisonhaul.com or call (307) 218-7231 — our team is here to help.
